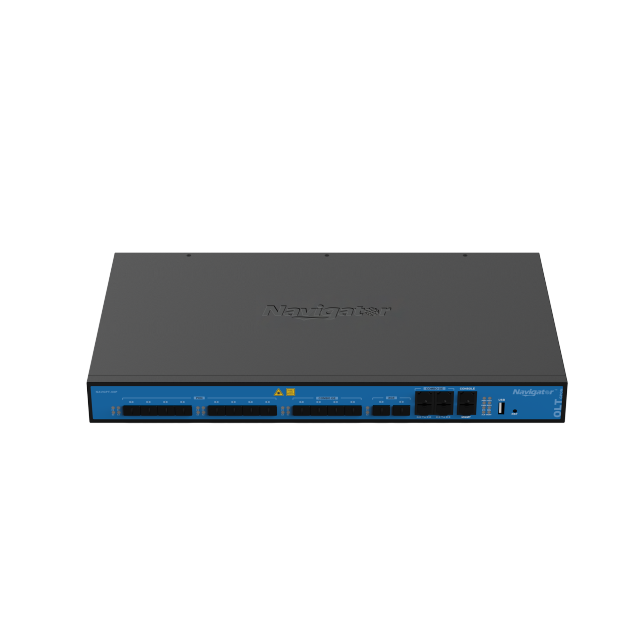

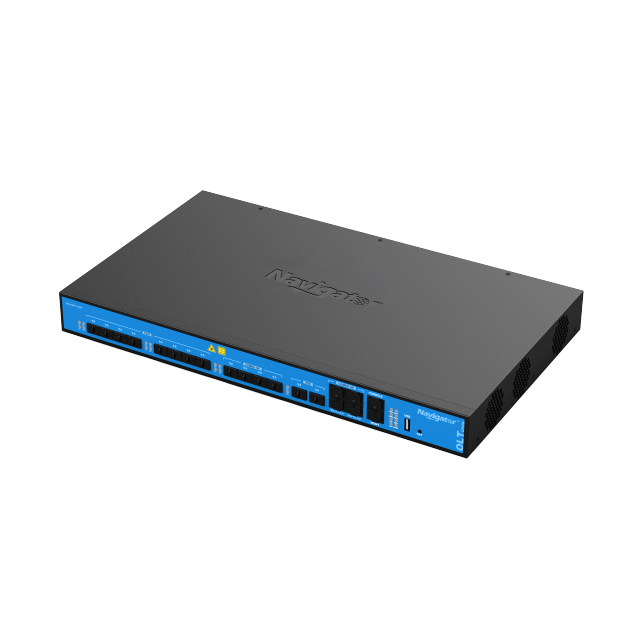

GPON OLT NAVGPT-04/08P

ARTICLE

NAVGPT-04P/08

Shelf

Guy

Standard 19-inch 1U case

Port of
link
upward

Combined port

4x 10/100/1000M Auto-Negotiation Ethernet Ports

4 SFP interfaces

10-Gigabit

2 SFP+ interfaces

PON Port

Amount

4(04P)

8(08P)

Physical interface

SFP

Interface type

GPON: ITU-TG.984.2 Class B+/ Class C+

Maximum split ratio

GPON: 1:128

Management port

1 100/1000BASE-Tx out-of-band Ethernet port 1
CONSOLA local management port

USB port

1 USB interface (used for data backup)
configuration, update the program and record registration information)

PON port
attribute

Transmission distance

20KM

Port fee

GPON:
Downstream: 2.5 Gbps Upstream: 1, 25 Gbps

Wavelength

Forwarding: 1490nm Receiving: 1310nm

Interface type

South Carolina/APC

fiber type

9/ 125µm SMF (single mode fiber)

Light transmission power

Class B+ ： +1 .5 ～ +5dBm Class C+ ： +3 ～ +7dBm

Sensitivity reception

Class B+ ： -28dBm Class C+ ： -30dBm

saturation power

Class B+ ： -8dBm Class C+ ： - 12dBm

Network management method.

Support CLI,SNMP,TELNET,SSH,WEB

Commercial capabilities

Supports device registration, device upgrade, management
of devices,
condition monitoring, configuration management and administration
of users.Management
Layer 2 Switching Configuration: How to Manage
ports, VLAN, RSTP, IGMP, ACL, QOS, etc.
PON function configuration management: such as OLT authentication,
DBA template, service template, line template, etc.
Layer 3 function: Support static routing, dhcp-relay and vlanif configuration.

Backplane Bandwidth

63G(04P)

78G(08P)

Size

440*44 *276mm

Weight

4.00Kg(04P)
4.50Kg(08P)

Source of
feeding

220VAC

AC: 100V ～ 240V ， 47/63Hz

-48DC

DC:-40V ～ -72V

BBU
(Backup battery unit)

DC: 11V ～ 14V
Function: When the normal power supply is cut off, it can be switched
to the backup power supply and when the supply is resumed
normal power, it will return to normal power supply.

Maximum power

45W(04P)
78W(08P)

Labor
atmosphere

Working temperature

- 15 ～ 50°C

Storage temperature

-40 ～ 85°C

Humidity

5~90% (non-condensing)
